Burj Al Yarmouk Industries LLC

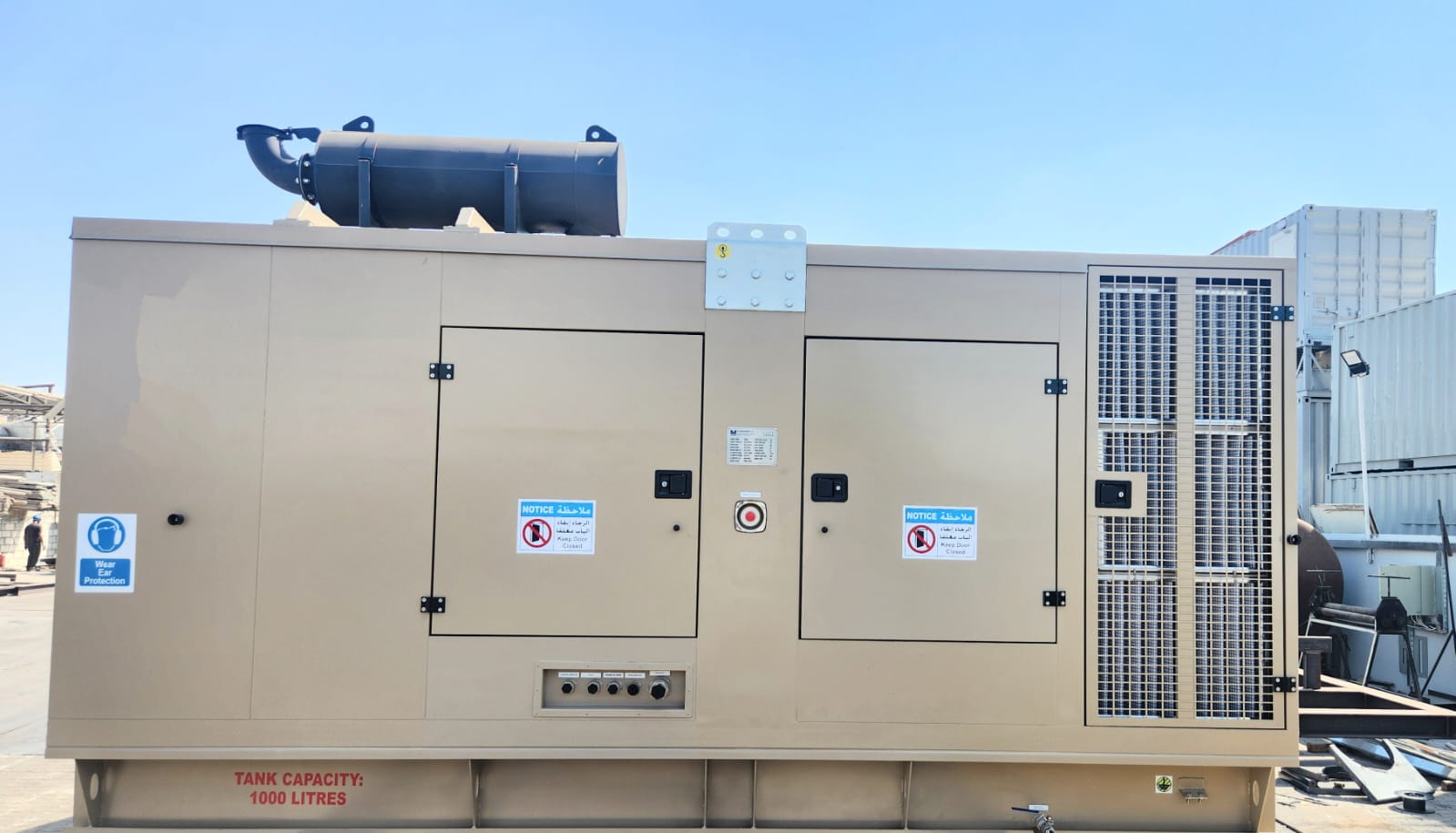

DROP OVER TYPE ACOUSTIC ENCLOSURE

Design, Supply & Manufacturing of Drop over Canopy for 100KVA & 750KVA Gensets.

Features
🔹 Noise Level 85dB @ 1 mtr in free field environment.
🔹Coupling of Engine & alternator on common base frame.
🔹Anti-Vibration mounting for Engine & Alternator mounting.
🔹Base skid extension.
🔹400 Ltr Integrated base fuel tank.
🔹External diesel filling point with heavy duty cap. 2” manual fuel fill connection with camlock coupling
🔹Inlet Louvers with Sand Filters
🔹Radiator Maintenance door and Access Doors.
🔹C5M Marine Grade Painting System.
🔹SS Door Lock, SS Hinges.
🔹Residential Grade Muffler with Thermal insulation jacket 2 Point lifting arrangements.
🔹400Amps, MCCB Breaker, 4P,50kA, 50 Hz, Manual Fixed type with suitable enclosure and bus bar.
🔹Supply & Installation of Power Cable from alternator to MCCB panel.
🔹Emergency push buttons on the local control panel box.
🔹Deep-Sea Controller (DSE 7320) control
🔹Supply & installation of 24VDC 20 Amps Battery charger.
🔹Battery isolator switch outside the canopy in a pocket.
🔹Maintenance free lead acid batteries with battery cables and stand.
